Description

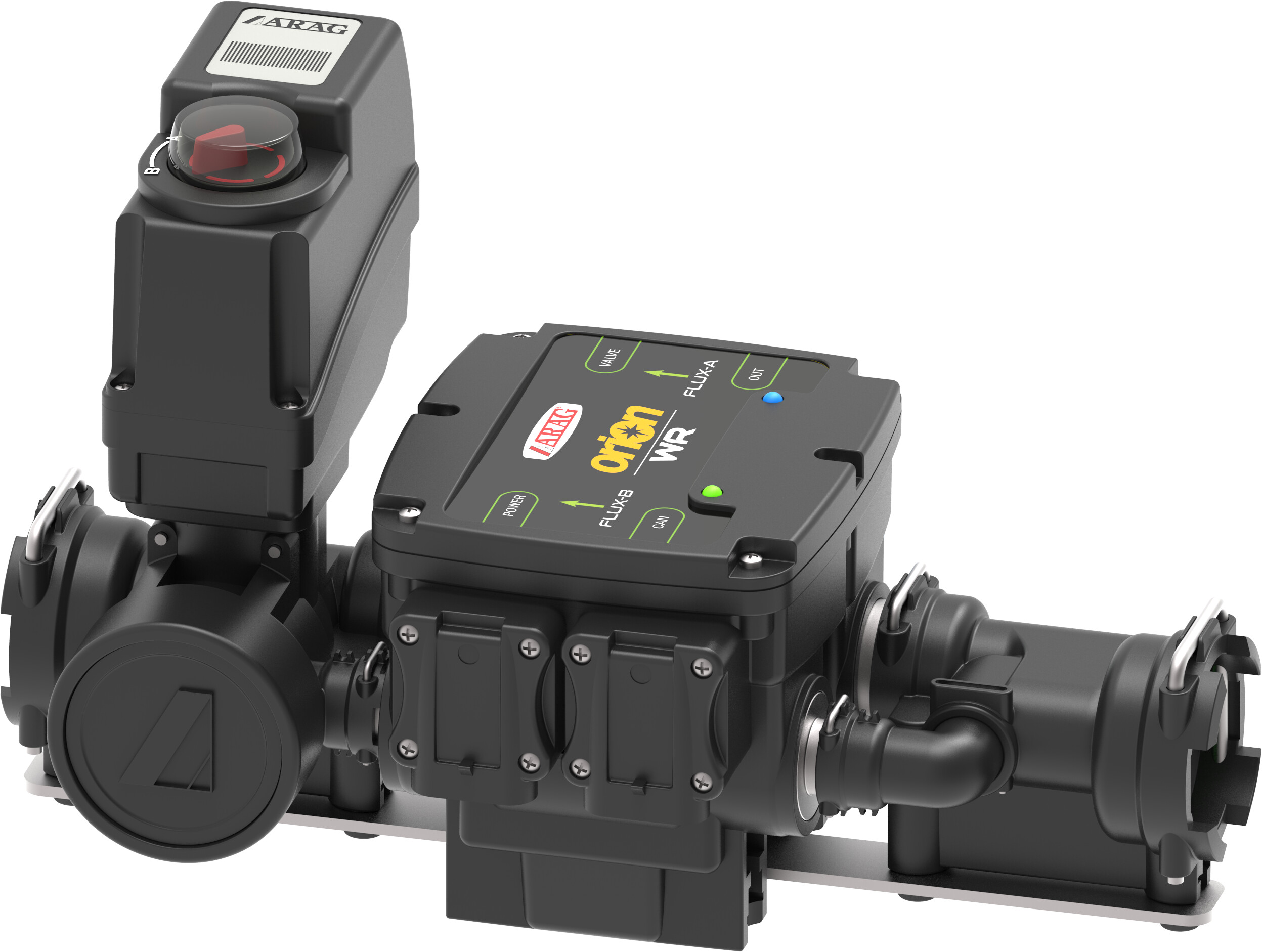

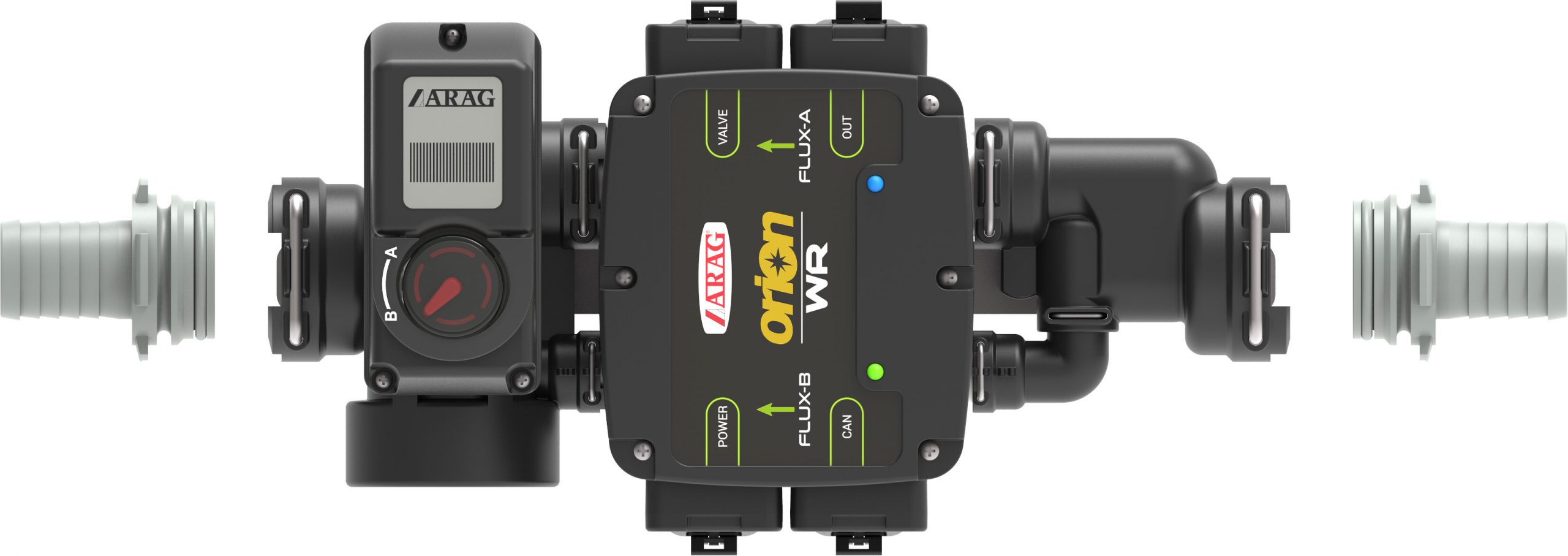

ARAG ORION WR – Wide Range Flowmeter
Orion WR is a system that allows measuring a very wide flowrate range, thus solving the problem of spraying machines that require the measurement of the flowrate of the entire boom as that of a single nozzle.
Technical Specifications
| Specification | Value |
|---|---|
| Code | 462W300 |
| Fork Coupling | T5 |
| Flow Rate | 0.3 – 200 l/min |
| MAX Pressure | 20 bar |
Key Features
- 2 pulse outputs with frequency proportional to the flowrate
- LED for status indication of each single channel
- 12 and 24 VDC models
- Clamping bracket included
- Possibility of connecting two Orion WR in parallel to further extend the measuring range
- Compatible with high conductivity fluids
